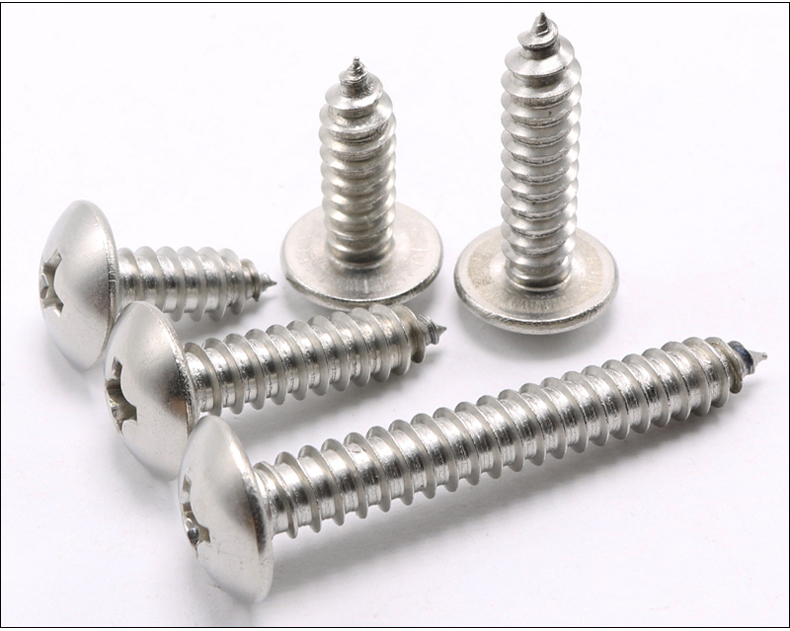

316 Stainless Steel Extra-Wide Rounded Head Screws for Sheet Metal Truss Head Phillips Drive Tapping Screws

Name: 316 Stainless Steel ExtraWide Rounded Head Screws for Sheet Metal Truss Head Phillips Drive Tapping Screws
Brand: Runtai
Price: 1 USD

China 316 Stainless Steel Extra-Wide Rounded Head Screws for Sheet Metal Truss Head Phillips Drive Tapping Screws factory

Place of Origin : Jiangsu, China (Mainland)

Brand Name : Runtai

Model Number : Tapping Screws

Supply Ability : 5 Tons/Day

Packaging Details : PP bag+Carton box+ Wooden Pallet

MOQ : 50000

Price : Negotiable

Certification : ISO9001/TS16949

Payment Terms : L/C, T/T, Western Union, MoneyGram

Delivery Time : 14-21 days

Products Name : Truss Head Phillips Drive Tapping Screws

Material : alloy steel, stainless steel, iron, copper, brass for choose

Grade : 4.8, 8.8, 10.9, 12.9 for choose

Surface treatment : zinc plated, nickel plated, black phosphates for choose

Size : M1-M30 for choose.

Standard : DIN ISO JIS ANSI

Contact Now

316 Stainless Steel Extra-Wide Rounded Head Screws for Sheet Metal Truss Head Phillips Drive Tapping Screws

Products Descriptions

More corrosion resistant than 18-8 stainless steel screws, these have excellent resistance to chemicals and salt water and may be mildly magnetic. They have a wider head than standard rounded head screws to distribute holding presure and reduce the risk of crushing thin metal.They penetrate 0.025" and thinner sheet metal. Length is measured from under the head.

Products Specifications

Material	316 Stainless Steel
Screw Size	No. 10
Screw Size Decimal Equivalent	0.190"
Length	1"
Head	Truss Head
Diameter	0.448"
Height	0.118"
Drive Size	No. 2
Drive Style	Phillips
Drill Bit Size	No. 21
Drill Bit Size Decimal Equivalent	0.159"
Maximum Drilling Thickness	0.025"
Approximate Threads per Inch	12
Thread Direction	Right Hand
Threading	Fully Threaded
Tapping Method	Thread Forming
Tapping Screw Type	A/AB
Head Type	Rounded
Rounded Head Profile	Wide
Rounded Head Style	Truss
Tip Type	Pointed
Shank Cross Section	Round
System of Measurement	Inch
For Use In	Sheet Metal
RoHS	Compliant

Note: Material, Size and Surface Treatment for choose.
