Pan Head Sheet Metal Tapping Screws , Pan Head Blunt Point Self Tapping Screws

Name: Pan Head Sheet Metal Tapping Screws Pan Head Blunt Point Self Tapping Screws
Brand: Runtai
Price: 1 USD

China Pan Head Sheet Metal Tapping Screws , Pan Head Blunt Point Self Tapping Screws factory

Brand Name : Runtai

Model Number : Tapping Screws

Certification : ISO9001/TS16949

Place of Origin : Jiangsu, China (Mainland)

MOQ : 50000

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5ton/day

Delivery Time : 14-21 days

Packaging Details : Poly bag+Cartoon Box+ Wooden Pallet

Products Name : Stainless Steel Phillips Drive Pan Head Sheet Metal Screws

Material : Stainless Steel Brass Copper Aluminum Alloy Steel

Standard : DIN,ANSI,JIS,ASTM,GB

Size : M1-M30 for choose

Surface Treatment : Zinc Plated, Nickel Plated, Zinc-Nickel Plated, Black Oxide

Grade : 4.8 8.8 10.9 12.9 for choose

Contact Now

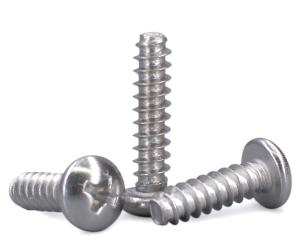

Stainless Steel Phillips Drive Pan Head Sheet Metal Screws Pan Head Blunt Point Self Tapping Screws

Products Description

18-8 stainless steel screws have good chemical resistance and may be mildly magnetic. Often referred to as Type B thread-forming screws, they require a drilled hole and are typically used in 0.050"-0.200" material. Length is measured from under head.

Products Specification

Material	18-8 Stainless Steel
Screw Size	No. 6
Screw Size Decimal Equivalent	0.138"
Length	3/4"
Head
Diameter	0.27"
Height	0.097"
Drive Size	No. 2
Drive Style	Phillips
Drill Bit Size	No. 32
Drill Bit Size Decimal Equivalent	0.116"
Approximate Threads per Inch	20
Thread Direction	Right Hand
Threading	Fully Threaded
Tapping Method	Thread Forming
Tapping Screw Type	B
Head Type	Rounded
Rounded Head Profile	Standard
Rounded Head Style	Pan
Tip Type	Blunt
Shank Cross Section	Round
System of Measurement	Inch
For Use In	Sheet Metal
RoHS	Compliant

Note: Material, Size and Surface Treatment for choose.

More Products Pictures

Pan Head Sheet Metal Tapping Screws , Pan Head Blunt Point Self Tapping Screws
